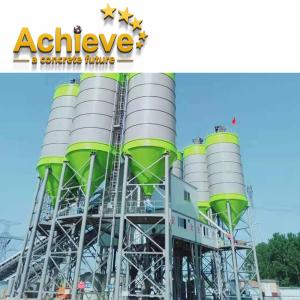

60 -240 CBM Per Hour Ready Mixed Concrete Batching Plant Operation Process And Attentions
concrete batching plant operation process and attentions
1. First, you need to observe the safety around the equipment to see if anyone is repairing the equipment.
2. Then power on the device, then check if the computer interface device is normal, If the equipment is abnormal,
it should be repaired in time.
3. After the equipment is normal, first open the air compressor.
4. After the air compressor is running normally at 5 to 8 Pressures, starts the equipment power switch
“Host – Skew Belt – Flat Belt” in sequence.
5. Click on the production details required by the interface to start production.
6. Concentrate on the work, pay attention to the observation system of the instrument, indicator, belt conveyor and
batcher. When there are large stones and materials, it should be removed in time.
7. The mixer should not stop when it is fully loaded. When a fault or power failure occurs, the power should be cut
off immediately, the switch box should be locked, the concrete in the mixer should be cleaned, and then the fault
should be eliminated or the power should be restored.
8. Maintenance, maintenance, lubrication, fastening, etc. cannot be performed during mechanical operation. I
t is forbidden to place your hands and feet near gates, belts, spiral tubes, motors, etc.
9. The operation completes the equipment shutdown, then closes the switches and pipeline equipment in sequence,
and the operator can confirm the safety before notifying the cleaning or maintenance personnel to clean or repair.
| MODEL | HZS 60 | HZS 90 | HZS 120 | HZS 180 | HZS 240 |
| Theoretical production(m3/h) | 60 | 90 | 120 | 180 | 240 |
| Mixer | Model | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 |
| Power(kw) | 2*18.5 | 2*30 | 2*37 | 2*55 | 2*75 |
| Output(L) | 1000 | 1500 | 2000 | 3000 | 4000 |
| Batcher | Hopper capacity(m3) | 10 | 15 | 18 | 22 | 24 |
| Hopper quantity | 3 | 3 | 4 | 4 | 4 |
| Hopper Quantily | 100 | 150 | 250 | 350 | 500 |
| Weighing Scope And Accuracy | Aggregate(kg) | 2000±2% | 3000±2% | 4800±2% | 8000±2% | 10000±2% |
| Cement(kg) | 600±1% | 900±1% | 1200±1% | 1800±1% | 2000±1% |
| Powder(kg) | 600±1% | 900±1% | 1200±1% | 1800±1% | 2000±1% |
| Water(kg) | 200±1% | 400±1% | 500±1% | 800±1% | 900±1% |
| Admixture(kg) | 30±1% | 30±1% | 30±1% | 30±1% | 30±1% |
| Total Power(kw) | 132 | 177 | 220 | 280 | 320 |
| Discharge Height(m) | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 |
| Note: 1.The total power does not include the power of screw conveyor; 2.The quantity of hopper can be designed as required; 3.The design can be changed as the customer ask. |
Achieve Innovations (Changsha) Co.,Ltd.
♥. A leading Supplier in the Construction Machinery Industry for Premium quality China-made Products
♥. Specializing in Concrete Machinery, Used & Recondition, Tailor-made Equipment & Parts
♥. We are a professional team, over 10 years experience in this industry.
♥.Achieve batching plant factory focused on the domestic market and sells more than 200 sets of batching
plants in the local market every year. It has participated in many major construction projects in China, and
ranked top five in sales of the batching plant,it is the largest buyer of SICOMA mixer, which is the domestic
first-class mixer brand. Chinese customers have a better understanding of Chinese products,The huge sales
in China help us accumulated rich experience in the production and quality of our batching plant, and the large
procurement also help us reduced the procurement costs. Now, with the professional international trade ability
of the Achieve overseas team, Achieve batching plant has been exported to more than 10 countries in
Southeast Asia, Central Asia and Africa.In the future, Achieve batching plant will serve more countries and customers.
