8Ton Diesel Heavy Duty Fork Lift FD80Z-Y 440V

Name: 8Ton Diesel Heavy Duty Fork Lift FD80ZY 440V
Brand: ZOOMLION
Price: 25 USD

Quality 8Ton Diesel Heavy Duty Fork Lift FD80Z-Y 440V wholesale

Place of Origin : Anhui, China

Brand Name : ZOOMLION

Packaging Details : Nude

Supply Ability : 50 Unit/Units per Month

Price : $25,500.00 - $26,500.00/Units

Applicable Industries : Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Construction works , Energy & Mining

Showroom Location : Egypt, Turkey, Italy

Video outgoing-inspection : Provided

Machinery Test Report : Not Available

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Engine, Gearbox, Motor, Gear

Condition : New

Voltage : 440V

Power : 23

Dimension(L*W*H) : 3800*2024*2585mm

Weight : 8 Ton

Warranty : 1 Year

UNIQUE SELLING POINT : High operating efficiency

Power type : Diesel

Fork Length : 1370mm

After Warranty Service : Video technical support, Online support, Spare parts

Local Service Location : None

After-sales Service Provided : Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support

Port : WUHU (FCL ) &SHANGHAI(LCL )

Contact Now

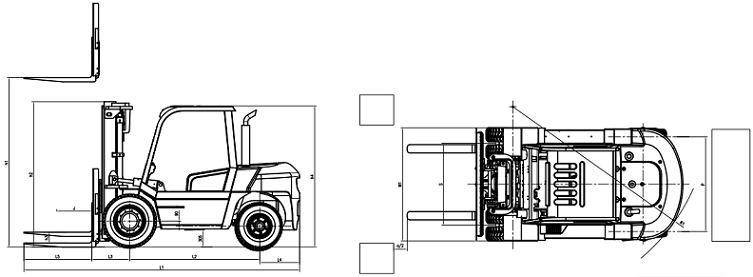

Forklift Diesel FD80Z-Y 8Ton Heavy Duty Manual

	Unit	FD80Z-Y
Power		Diesel
Rated Capacity	kg	8000
Load center	mm	600
Lifting height	mm	3000
Forks L×W×H	mm	1220×150×80
Tilt Forward/Backward	.	6/12
Min.turning radius	mm	3652
Min.ground clearance(Mast)	mm	305
Min.ground clearance(Mast)	mm	305
Overhead guard height	mm	2530
Front overhang	mm	680
Max.traveling speed(loaded)	km/h	30/26
Max.lifting speed(empty)	mm/s	485
Max.lifting speed(loaded)	mm/s	460
Max lowering speed(empty)	mm/s	345
Max lowering speed (loaded)	mm/s	380
Drawbar pull/gradeability	kN/%	60
Climbing ability(loaded)		28
Overall length (without fork)	mm	3716
Overall width	mm	2035
Mast lowered height	mm	2630
Front tyre		8.25-20-14PR
Rear tyre		8.25-15-14PR
Wheel base	mm	2340
Tradebase(front/rear)	mm	1470/1700
Curb weight(non-loaded)	kg	10350
Battery voltage/capacity	V/Ah	(12/90)x2
Engine model		Weichai
Rated power	kw/r.p.m	83/2000
Rated torque	Nm/r.p.m	450/1450
Cylinder amount		6
Bore×Stroke	mm	110×125
Displacement		7.127
Fuel tank	L	140
Transmission		2/2 Powershift
Working pressure	MPa	20

Product Tags:

8Ton heavy duty fork lift

440V heavy duty fork lift

FD80Z-Y

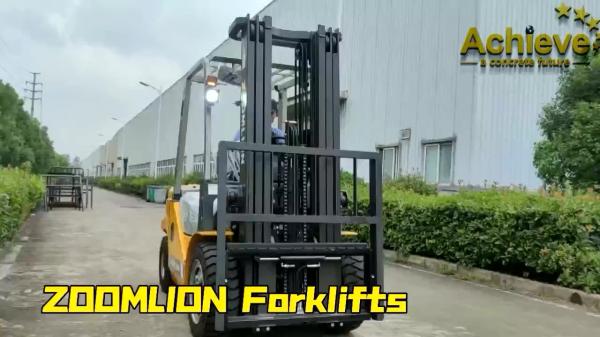

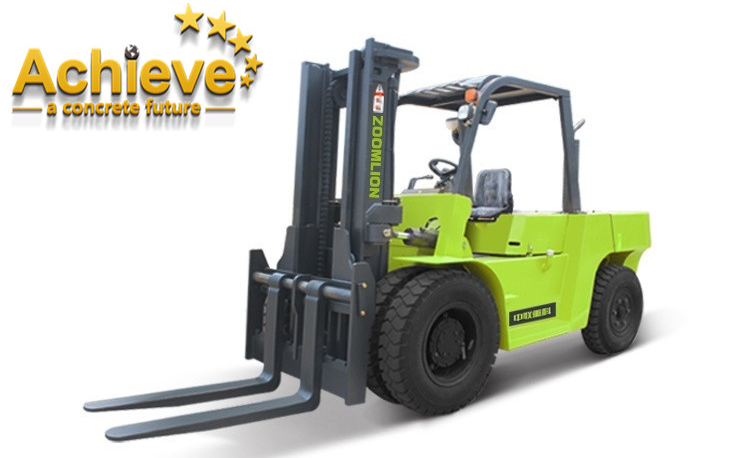

8Ton Diesel Heavy Duty Fork Lift FD80Z-Y 440V Images
